Betex Cylinder NSHS 306 - 8240306 | 30 tons | 160mm | 763 cm³ | 330mm A | 490mm W | 117mm | 21.5mm | 59.9mm | 0.5mm | 1 7/8" 16 UN | 3/8" 16 UNC F | 4 1/2" 12 UN | 34mm Y | 20.4 kg

Description

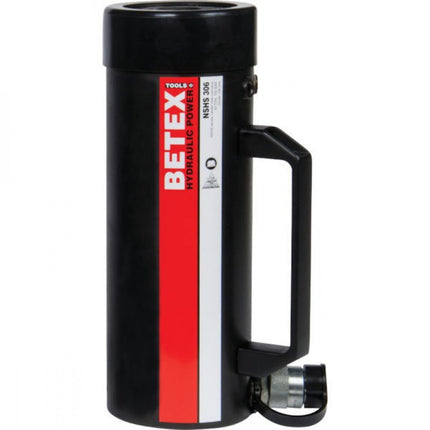

Description of Betex Cylinder NSHS 306

Technical information
Capacity : 12 - 100 tons
Stroke : 8 158 mm
max. working pressure : 700 bar
All cylinders are single acting and spring return
Hard chromed pistons
Cylinder housings are rolled, outside sandblasted with black nitride coating
Capacity (tons): 30 tons
Stroke : 160mm
Oil capacity : 763 cm³
Min. height (A): 330 mm
max. height (B) : 490 mm
D: 117mm
E : 90mm
F: 65mm
H: 21.5mm
J : 59.9mm
K: 0.5mm
O : 1 7/8" 16 UN
P : 25mm
U : 92mm
Mounting thread (V) : 3/8" 16 UNC
W : 4 1/2" 12 UN
X : 42mm
Cylinder bore (Y) : 34 mm
Z : 14mm
Weight : 20.4 kg

Betex Cylinder NSHS 306 - 8240306 | 30 tons | 160mm | 763 cm³ | 330mm A | 490mm W | 117mm | 21.5mm | 59.9mm | 0.5mm | 1 7/8" 16 UN | 3/8" 16 UNC F | 4 1/2" 12 UN | 34mm Y | 20.4 kg

Product form

Description of Betex Cylinder NSHS 306 Technical information Capacity : 12 - 100 tons Stroke : 8 158 mm max.... Read more

1 in stock

€3.150,00€2.450,00 Incl. VAT

    • Shipped today? Order within: Sep 12, 2024 22:00:00 +0200
    • Guaranteed the lowest price!
    • Shipping to the Netherlands & Belgium
    • 14 days reflection period
    • Voor 23:59 besteld is morgen in huis

    Description

    Description of Betex Cylinder NSHS 306

    Technical information
    Capacity : 12 - 100 tons
    Stroke : 8 158 mm
    max. working pressure : 700 bar
    All cylinders are single acting and spring return
    Hard chromed pistons
    Cylinder housings are rolled, outside sandblasted with black nitride coating
    Capacity (tons): 30 tons
    Stroke : 160mm
    Oil capacity : 763 cm³
    Min. height (A): 330 mm
    max. height (B) : 490 mm
    D: 117mm
    E : 90mm
    F: 65mm
    H: 21.5mm
    J : 59.9mm
    K: 0.5mm
    O : 1 7/8" 16 UN
    P : 25mm
    U : 92mm
    Mounting thread (V) : 3/8" 16 UNC
    W : 4 1/2" 12 UN
    X : 42mm
    Cylinder bore (Y) : 34 mm
    Z : 14mm
    Weight : 20.4 kg
